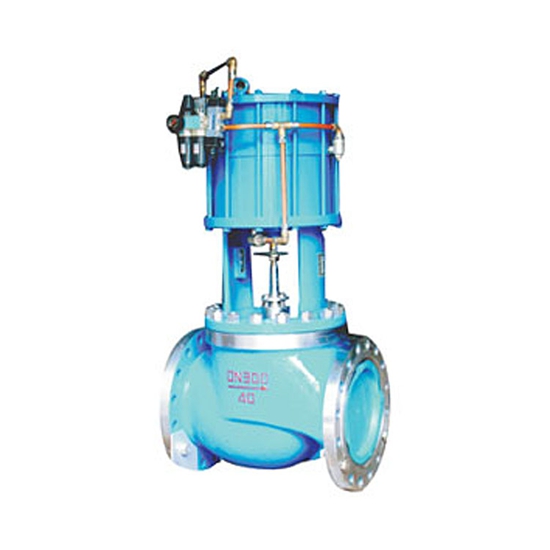

ZQGP quick disconnect valve pneumatic piston

關(guān)注次數(shù)：

ZQGP pneumatic quick disconnect valve from the domestic first introduced more than a spring piston pneumatic actuator and low flow resistance, double shut-off valve sealing structure components. Actuator movement speed, thrust, a self-reset function, with hand operated institutions; body unobstructed flow path, flow coefficient, elastic and rigid spool valve cascade double seal. New and unique structure makes the product quickly became a class action, tight cut, safe and reliable, high-performance new shut-off valve.

Main parts and materials

材料代號		C（WCB）	P（304）	R（316）
The main parts	Body, bonnet	WCB（ZG230-450）	ZG1Cr18Ni9Ti（304）	ZG1Cr18Ni12Mo2Ti（316）
	Valve, valve seat	1Cr18Ni9Ti（304）or the Secretary of titanium alloy welding Levin	1Cr18Ni9Ti（304）or the Secretary of titanium alloy welding Levin	1Cr18Ni12Mo2Ti（316）or the Secretary of titanium alloy welding Levin
	Stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
	Packing	V-type PTFE (F4), flexible graphite
	Gasket	PTFE (F4), stainless steel gaskets, metal graphite spiral wound gasket
	Oil and rubber O-ring	Spring 60Si2Mn
	Spring	60Si2Mn
	Putting	2Cr13
	Handwheel	HT200
Conditions apply	For media	Water vapor liquid gas oil category	Alkali corrosive nitric acid gas liquids	Acetic acid and other corrosive gases and liquids
Conditions apply	Temperature	Hard seal: -30 ~ +450 ℃ soft seal: -30 ~ +180 ℃

The main technical parameters

DN mm	20	25	40		50	65	80	100	150		200
Seat diameter mm	20	25	32	40	50	65	80	100	125	150	200
Rated flow coefficient Kv	6.5	10	15	25	40	65	100	150	260	350	540
Nominal MPa	1.6 ； 4.0 ； 6.4
Stroke mm	10		16			25		30	40		60
Flow characteristics	Quick opening
Actuator Model	ZSPA/B-1、ZSNA/B-1					ZSPA/B-2、ZSNA/B-2			ZSPA/B-3、ZSNA/B-3
Action in the form of	Single acting / double acting
Air pressure MPa	0.4-0.7
Leakage	Soft Seal: O leakage; hard seal :10-5 × valve rated capacity
Off time S	0.5		1			1.5		2	3		4

Equipped with accessories: solenoid valves, valve echo, air filter regulator, handwheel operation mechanism Dimensions

DN(mm)	H(mm)	Hg(mm)	ФA(mm)	ФD(mm)		L(mm)
DN(mm)	H(mm)	Hg(mm)	ФA(mm)	PN1.6	PN6.4	PN1.6	PN6.4
25	410	580	196	115	135	184	210
40	514	684	266	150	165	222	251
50	520	690	266	165	175	254	286
65	694	904	348	185	200	276	311
80	696	906	348	200	210	298	337
100	709	919	348	220	250	352	394
150	1186	1146	486	285	340	451	508
200	1208	1468	486	340	405	600	650

Ordering Information
A product model and name 2. Nominal diameter DN (mm 3. Nominal 4. Flow characteristics required 5. Valve material and trim materials 6. Media type and temperature range 7. Valve after pressure (pressure) 8 sealing form 9. matching accessories, it is recommended to install air filters FRL with two five-way solenoid valve
