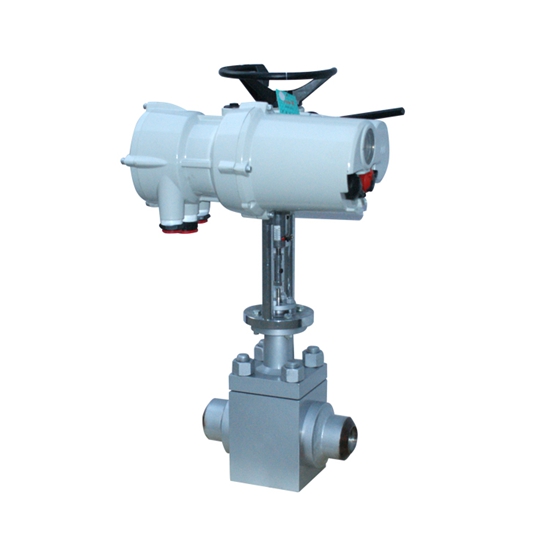

T968Y electric high differential pressure regulating valve

關注次數(shù)：

T968Y electric high differential pressure regulating valve is composed of PS series or 3610 series of straight travel electric actuator and low flow resistance through single seat valve. (also can be equipped with other brands of linear actuators). Electric actuator for the electronic integrated structure, a servo amplifier, the input control signal (4-20mADC or 1-5VDC) and the power to control the valve opening, to adjust to working parameters of pressure, flow, liquid level, temperature etc.. Is sensitive, simple connection, big flow, small volume, high accuracy regulation. The control precision and has better performance than DKZ.
Single seat valve is applicable to strict, valve and pressure is low and has certain viscosity occasions of leakage for. Widely used in electric power, metallurgy, chemical industry, petroleum, environmental protection, light industry, equipment industry.

Main technical parameters:

Nominal diameter mm		G3/4”						20				25	32	40	50	65	80	100	125	150	200	250	300	350	400
Seat diameter mm		3	4	5	6	7	8	10	12	15	20	26	32	40	50	66	80	100	125	150	200	250	300	Production and the company to negotiate
The rated flow coefficientkv	Linear type	0.08	0.12	0.20	0.32	0.5	0.8	1.8	2.8	4.4	6.9	11	17.6	27.5	44	69	110	176	275	440	690	1000	1600
	The percentage of							1.6	2.5	4	6.3	10	16	25	40	63	100	160	250	400	630	900	1440
Nominal pressure (MPa)		0.6，1.6，2.5，4.0，6.4
Trip (mm)		10										16		25		40			60			100
Flow characteristics		A straight line						Linear, equal percentage, quick opening
Working temperature ℃		-40～230℃(At room temperature)，Plate fin230～450℃(Medium temperature)，Special orders-100～600℃
Flange size		In accordance with JB78-59、JB79-59In accordance with，According to the JB/79.1-94、JB、ANSI、JIS、DIN Standard order production
Body material		WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M
Valve material		1Cr18Ni9，SS304，0Cr18Ni12Mo2Ti，SS316，ZG1Cr18Ni9Ti
The valve type		Through single seat casting ball valve
The valve cover type		Ordinary type (room temperature), hot chip (Zhong Wen), a long necked type (low temperature)
The electric actuator of model	PSL	PSL-201										PSL-202		PSL-204		PSL-208			PSL-312			PSL325
	361L	361LSA-08 361LXA-08										361LSA-20		361LSB-30		361LSB- 50			361LSC-65			361LSC-99
	Explosion proof type	361LXA-20												361LXB-30		361LXB- 50

Note:
1 can provide ANSI, JPI, JPI and other foreign flange standard product for the user, the flange focal distance is determined according to the needs of users.
2 the working temperature, the nominal pressure, nominal diameter exceeds the scope of list products can be solved with the company to negotiate

The implementation of the main technical parameters of mechanism:

Model		Rated output power N		Speed of mm/s		Technical parameters
PSL	361L	PSL	361L	PSL	361L	PSL	361L
201	361LSA-08 361LXA-08	1000	800 800	0.25	4.2 4.2	Power supply: AC220V 50Hz Input signal: DC4-20mA DC1-5V (shielding line signal line) The output signal: DC4 ~ 20mA Protection grade: IP67 With the handwheel	Power supply: AC220V 50Hz Input signal: DC4-20mA DC1-5V (shielding line signal line) The output signal: DC4 ~ 20mA Protection grade: IP55 The explosion-proof symbol: Exd II BT4 With handle
202	361LSA-20 361LXA-20	2000	2000 2000	0.50	2.1 2.1
204	361LSB-30 361LXB-30	4500	3000 3000	0.50	3.5 3.5
208	361LSB-50 361LXB-50	8000	5000 5000	1.00	1.7 1.7
312	361LSC-65	12000	6500	0.60	2.8
325	361LSC-99	25000	10000	1.0	2.0

The performance index:

Project			Index value
The basic error ％			With3610L±2.5； Belt positioner ±1.0
Differential%			With 361L ±2.0； With PSL±1.0
Dead%			1.0
Always point deviation%	Electric drive	The starting point	±2.5
		Finish	±2.5
	Power off	The starting point	±2.5
		Finish	±2.5
Adjustable range			50：1
Rated stroke deviation%			2.5
Discharge amount of L/H			In accordance with rated capacity of JB/T7387-94 IV less than the valve x 10-4

To allow pressure:

Nominal diameter (mm)		20				25	40		50	65	80	100	150		200	250	300
Seat diameter (mm)		10	12	15	20	25	32	40	50	65	80	100	125	150	200	250	300
Actuator		Allowable voltage difference△P（MPa）
With PSL	PSL202	6.4	6.4	6.4	4.90	3.14	1.92	1.23	0.78
	PSL204						4.31	2.76	1.76	1.04	0.69	0.44
	PSL208									1.86	1.23	0.78	0.50	0.35	0.20
	PSL320												1.26	0.87	0.49	0.32	0.22
With 361L	361LSA-20	6.4	6.4	6.4	4.90	3.14	1.92	1.23	0.78
	361LSB-50						4.79	3.06	1.96	1.16	0.76	0.49
	361LSC-65									1.51	0.99	0.64	0.41	0.28
	361LSC-99												0.63	0.44	0.25	0.16	0.11
